RAMMon is an easy to use Windows based application that allows users to quickly retrieve the Serial Presence Detect (SPD) data from their RAM modules. It will allow users to identify a multitude of attributes, of which, includes the manufacturer, the clockspeed and other data of their DDR2, DDR3, DDR4, XMP and EPP memory devices and even some older memory types. It uses SysInfo DLL SDK to gather the SPD attributes from RAM devices. This information provides a snapshot of the available data for each RAM module installed on the system.
What is SPD?
Serial Presence Detect (SPD) is the standard set forth by JEDEC for a host system to retrieve attributes of memory modules. The SPD standard is intended for use on any memory module, independent of memory technology or module form factor.
I added 'Total memory populated' (The sum of all non-empty slots), & 'NO EMPTY SLOTS - ALL SLOTS POPULATED' (if no free slots); & '# of slots available/open.' So, here I have part of my suggested enhancement - could not figure how to enumerute specific empty slots, so I left 2 lines commented out, if someone knows. Find where the ram is installed, desktops will need case removed and notebook should have a RAM access panel on the bottom of the laptop. Once you can see the RAM slots, you can identify the modules, there will be numbers and codes on the modules that identify the speed: look for a part number starting with PC2 or PC3 or PC4.
Name Of Ram Slot
RAMMon displays the values stored on RAM module such as the memory capacity, the manufactuer, serial number, model part number, the CAS latencies supported and the module voltage.
Also, depending on your RAM type, other specific SPD data can be retreived as well. Such as the module thickness, module width, maximum operating temperature and more.
Recently, I upgraded my laptop’s RAM from 8 GB to 16 GB and if you are on the same page wondering whether it is running in the dual-channel mode. Here is how to check it.
Foremost, check on the manufacturer’s website that your motherboard supports dual-channel memory. Next, it’s pretty straightforward and you require an app called CPU-Z. But before that, we will have to understand what is the dual-channel mode and how to ensure you install a RAM in dual-channel mode. If you are well aware of these concepts, you can move ahead to this portion.
Consider the channels as roads from your RAM to the CPU. When there is a single channel or a single road, the vehicles have to drive in a single line behind each other. Whereas in the case of dual-channel memory, 2 vehicles can drive simultaneously which leads to an increased number of vehicles or more data being sent.
Now, there is an intermediatory unit between the RAM and CPU known as the memory controller which guides the data to and fro.
Previously in the single-channel architecture, there was a single path to send data. So, the memory controller couldn’t route data simultaneously from 2 RAM sticks. This caused the CPU to wait and it is known as the bottleneck effect. Later, we doubled up this wired route which is known as dual-channel architecture (you also have triple and quad-channel, let’s leave it for this article). This enabled the controller to route data simultaneously from 2 RAM sticks to the CPU. Hence, the CPU has enough data to process every time and it doesn’t have to wait. This eliminates the bottleneck between the CPU and RAM.
So switching to dual-channel will let you better utilize your CPU with the only bargain being the increased RAM stick. To show the difference between single-channel and dual-channel, I did a benchmark with a single Crucial 8GB 2400 Mhz RAM and 2 x 4 GB 2400 Mhz RAM sticks. The results show that when in dual-channel mode (ie. 2 x 4 GB sticks), the read-write speeds are about 25-30% higher.
Read: CRU Monitor Overclocking and How Do You Do It?
How to choose RAM for dual-channel mode
To begin with, I am using an Acer E5-575G laptop which uses SODIMM memory sticks. In simple words, DIMM is basically longer memory sticks for desktop motherboards whereas SODIMM is a smaller memory stick for notebooks. Here, I am using a SODIMM memory for my laptop which has 2-memory channels.

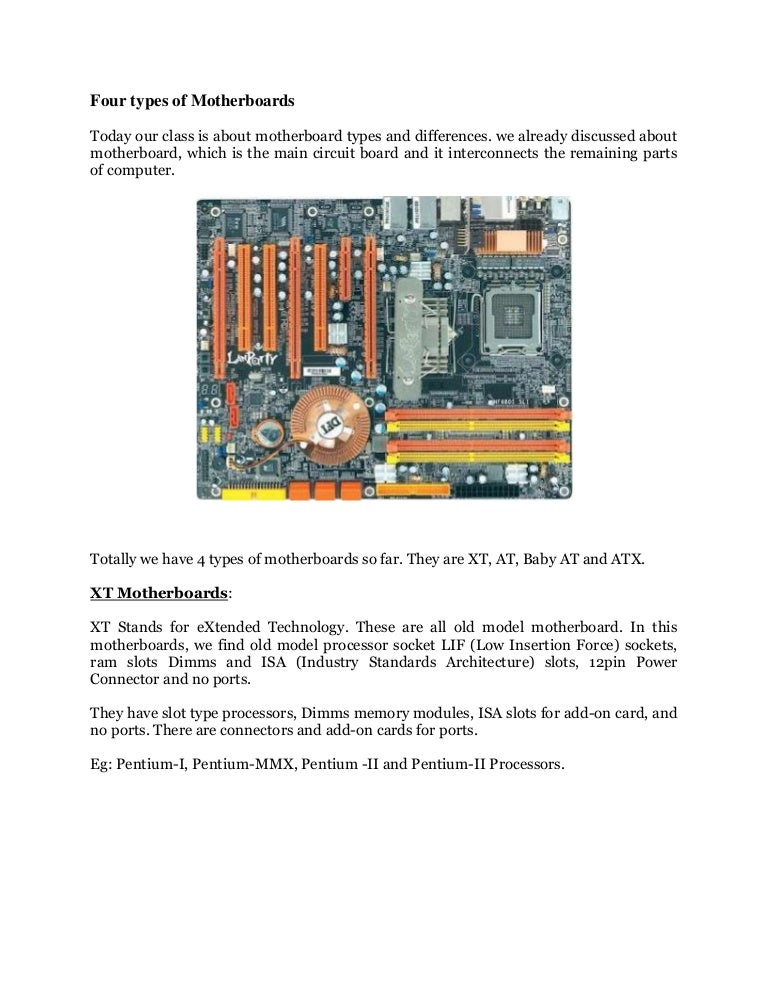

Laptops have only 2 memory slots so they are supposed to run in dual channel (if supported on the motherboard). Desktop motherboards, on the other hand, have 4 channels and even 6 to 8 channels, so you need to put the RAM sticks in channels that are similarly color-coded. For instance, in the below figure, the RAM channels are colored black and blue. So, if you insert the RAM sticks in the blue slots or black slots it would run in dual channel mode. In case you insert one of the stick in the black slot and the other one in the blue slot, it won’t run in dual channel mode.
With all the complexities aside, now let’s move down to RAM specs. There is a lot of confusion on RAM specs and what dual-channel requires, let’s discuss those.
Foremost, it’s advisable to buy RAM kits or the same RAM units. The reason being, the RAM needs to have the same Double Data Rate version (DDR), the same frequencies and the capacity to run at full potential. Having said that, there are some misconceptions about the dual-channel mode.
- If you have RAMs with different frequencies it won’t run in dual-channel mode.
Wrong! In case you have a 2400 Mhz RAM and 1800 Mhz RAM, it will run in dual-channel but will fall back to the lower 1800 Mhz frequency.
- Similarly, if you have an 8 GB RAM and a 4 GB RAM stick, it won’t run in dual-channel mode.
Wrong! This is called mismatched memory. However, due to modern-day CPUs, it will still run in dual-channel mode. The first 8 GB will run in dual-channel whereas the rest of the 4 GB will run in the single-channel. To know more about this, read about Intel’s Flex memory mode and flex mode even works on AMD CPU’s. Have a look, at the following screenshot.
However, if you have the budget and resources, it is advised to use a similar specification memory.
How to check dual-channel mode
The easiest way is by using a third-party app called CPU-Z. Download, install and open the app. The first page would provide you a summary of the CPU specifications. Move over to the Memory tab and in the first row you would see a labeled as “Channel #”.
Ram Slot Name
This shows you the memory channel mode. In my case, I have a couple of 8 GB RAM sticks installed on my laptop. So, you can see the channel mode says “Dual”. In case, you have memory sticks running in single-channel mode, it would show up as “Single”
Ram Slot Name Plates
Download CPU-Z
Additionally, you can also check the dual-channel mode through a benchmarking app like MaxxMem. Moreover, some manufacturers like the ASUS or the Acer predator show the memory channel mode in the BIOS menu itself.
For iMac, you can do so using the System Information inbuilt app. Navigate to the Memory tab and you would see memory slots. Count the number of Banks to determine the number of channels. In my case, we have Bank 0 and Bank 1 which means dual channel.
In the case of Linux, you can use the following command
Fore more issues or queries regarding RAM and dual-channel mode, let me know in the comments below.
